At Pacific Electric, we provide high-quality, UL-listed power distribution equipment designed to meet the needs of many industries. Whether you're managing a commercial, industrial, or mission-critical facility, our products deliver reliability, safety, and efficiency. From switchboards and panelboards to custom retrofit solutions, we offer advanced technology and expert engineering to handle even the most complex electrical requirements.
Explore our product offerings below to find your right solution.
Power Distribution Solutions Built for Performance

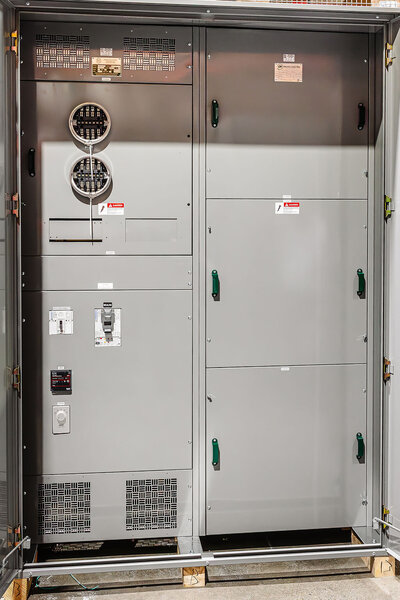

UL 891 Switchboards
Our UL 891 Switchboards provide a reliable and flexible power distribution solution for a wide range of applications including: service entrance, commercial metering, utility compliant, portable generator connections, multiple incoming sources, solar applications, panelboard, transformer and transfer switch integration.
Designed for both indoor and outdoor environments, our switchboards are available in standard and stainless steel enclosures, ensuring durability in any setting. Add switchboard sections, retrofit breakers, controls, or metering to existing equipment from any manufacturer.
Key Features & Capabilities:
Utility Compliant: EUSERC and nationwide utility approved designs
Voltage & Bus Options: Up to 600VAC, with aluminum or copper bus configurations
Breaker & Fusible Solutions: Tailored to meet your system requirements
Seamless Integration: Transfer switches, motor control centers, and closed-coupling to dry-type and liquid-filled transformers
Flexible Design: Panelboard and dry-type transformer integration for a streamlined power system
Our Quick Switchboard offering is design to help you complete your project faster. With standard configuration we offer a reduced leadtime without the need of an expedite fee.
This Euserc-ready solution fits services up to 600VAC 3 phase or 1 phase from 400A, 600A to 800A, and can include a Euserc underground pull section, Euserc Metering Compartment, main breaker and in most cases up to (6) 3 pole 225A distribution breakers. It features a shallow 16” deep design on NEMA 1 and or 28” for NEMA 3R Options. It is a modular design required to be cabled in the field by installer, cable is not supplied with equipment.
Key Features & Capabilities:
Utility Compliant: EUSERC
Voltage & Bus Options: Up to 600VAC, with aluminum or copper bus configurations
Breaker Solutions: Tailored to meet your system requirements
Modular Design
Fully Assembled

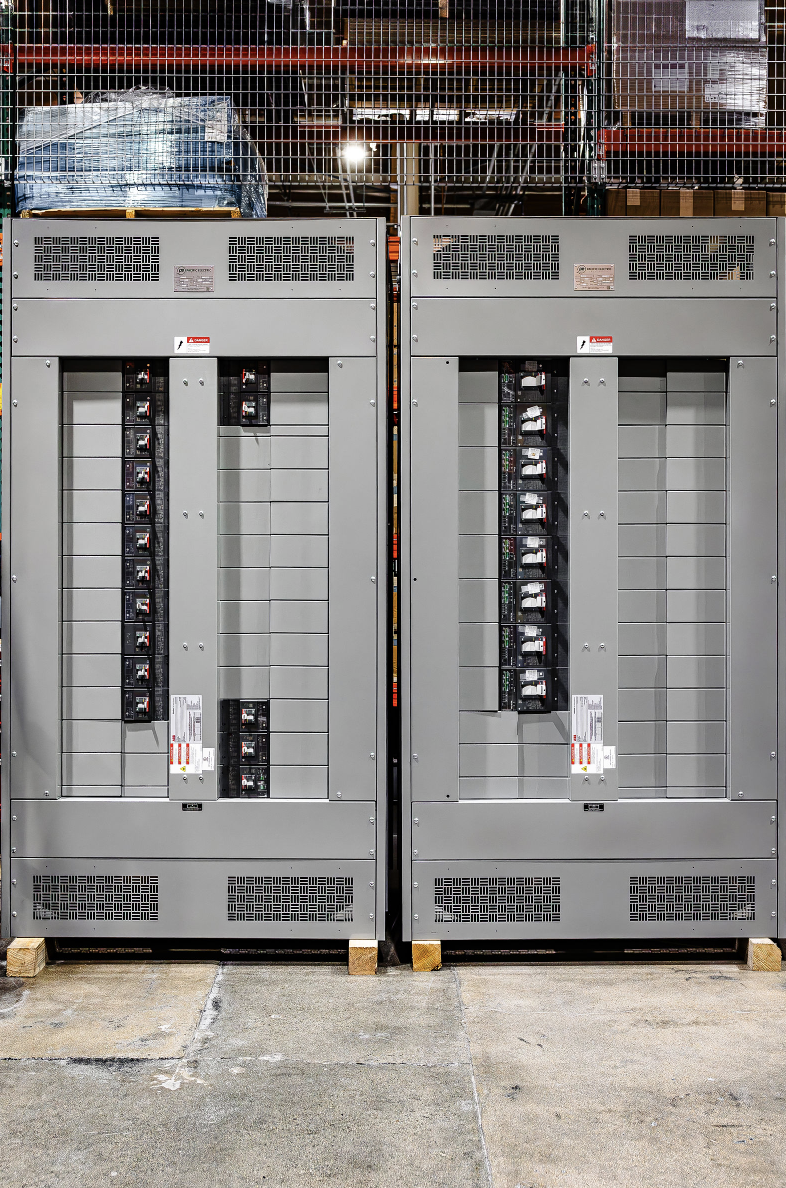

UL 891 Quick Switchboards

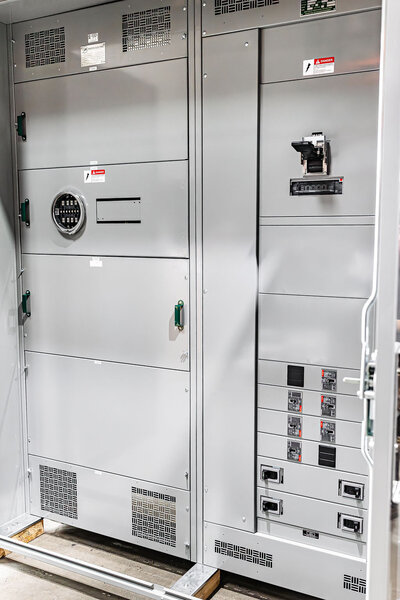

UL 891 Data Center Switchboards
Our Data Canter Switchboards can meet your aggressive construction deadlines integrate state-of-the-art protection technology and monitoring component to give you the control you need to manage the integrity of the data center electrical infrastructure.
Our data Center switchboards merge the latest breaker features, relay technology, and monitoring capabilities to provide extensive access and control to electrical switchgear across your multiple facilities, keeping your electrical assets in view.
Our electrical engineering team assists in the configuration of the equipment to optimize space and maximum power delivery to the equipment that matters.
Our data Center switchboards also integrate transfer switch and UPS components, Portable generator connections, Drawout breaker and electrical operate breaker construction, Zone interlocking features, Metering and monitoring components capable of communicating in the preferred owner’s platform to seamlessly integrate with the rest of the building management equipment
Key Features & Capabilities:
Voltage & Bus Options: Up to 600VAC, with aluminum or copper bus configurations
Breaker or Fusible Solutions: Tailored to meet your system requirements
Front or Rear Access
Drawout or fixed Braker Constructions
Metering and Monitoring Device Integration
Transfer switch Integration
Control Relay Integration
UPS and SPD Integration
Main-Tie-Main Solutions

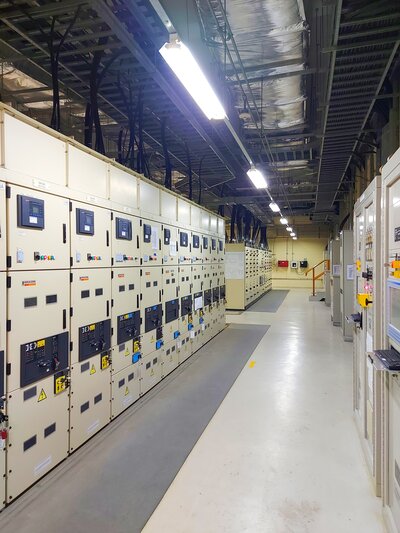

Our Medium Voltage Switchgear offers metal-clad and metal enclosed air insulated solutions that can be engineered to meet a vast number of industry requirements. Offering 5-38 kV options with Vacuum Breaker Technology, Robust Relay Protection, Remote racking controls and traditional or digital sensing. EUSERC Metering Sections are part of out standard design.
Key Features & Capabilities:
IEEE C37.20.2 Medium-Voltage Metal-Clad Standard,
UL Listed up to 27KV
Epoxy-insulated busbars
Indoor and outdoor options
Up two high breaker Compartments per Section
Medium Voltage Switchgear

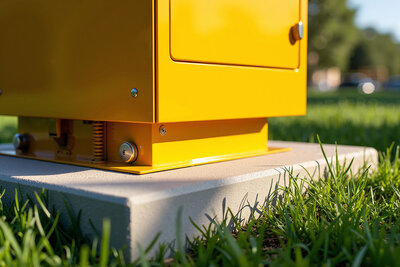

508A Commercial Meter Pedestals
Our 508A Commercial Meter Pedestals are designed for rugged outdoor use, providing a utility-approved, UL 508A-compliant solution for commercial and industrial metering applications. Built to withstand harsh environments, these pedestals offer flexible configurations to meet your specific power distribution needs.
Key Features & Capabilities:
Outdoor-Rated Construction for long-lasting durability
EUSERC-Compliant designs to meet regional utility requirements
Customizable Metering Options including meter sockets, main breakers, controls, and loadcenters
Breaker & Fusible Disconnect Options for enhanced system protection
Aluminum & Copper Bus Options to match industry specifications
Ideal for multi-tenant buildings, retail spaces, and industrial facilities, our commercial meter pedestals provide a reliable and adaptable solution.
UPS and SPD Integration
Main-Tie-Main Solutions

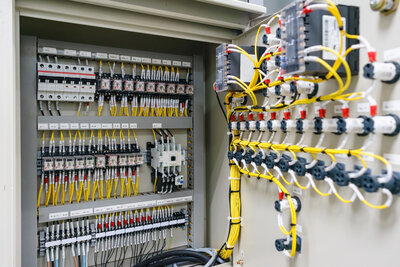

Our UL 508A Control Cabinets are designed to meet motor and lighting control requirements, providing a secure, compliant, and customizable solution for a wide range of industrial and commercial applications. With indoor, outdoor, and special environment-rated enclosures, these cabinets ensure safe, organized, and efficient operation in any setting.
Key Features & Capabilities:
UL 508A-Compliant for safety and reliability
Custom Configurations to support motor and lighting control needs
Indoor, Outdoor & Special Environment Ratings for maximum durability
Seamless Integration with switchgear, power distribution panels, and motor control centers
Rugged Construction to withstand demanding conditions
Whether you need a standalone control cabinet or a fully integrated solution, our UL 508A Control Cabinets deliver the flexibility, protection, and performance your project requires.
UL 508A Control Cabinets

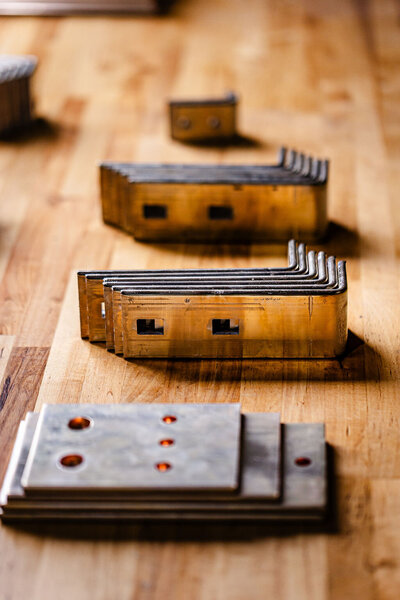

Bus Taps
Our Bus Tap services provide a safe, efficient, and reliable solution for connecting downstream equipment to existing bus bar systems. Ideal for photovoltaic installations and expanding power distribution, our services ensure a secure and code-compliant connection without the need for extensive system modifications.
Our Bus Tap Services Include:
Field Equipment Survey by one of our qualified field engineers
Approval Drawings to ensure compliance and accuracy
High-Quality Parts for a seamless and durable installation
Whether you need to integrate new equipment into an existing system or enhance your power distribution capabilities, our Bus Tap solutions offer a cost-effective and efficient way to expand your electrical infrastructure.

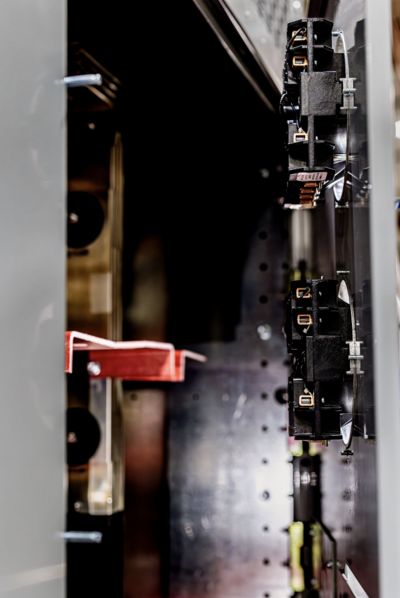

Our Meter Socket Kits provide a seamless retrofitting and expansion to existing commercial multi-meter sections, ensuring a secure and custom-fit installation. Pacific Electric can provide installation kits for most multi-meter sections—simply consult with our factory to determine compatibility.
Key Features & Services:
Custom Adaptor Brackets & Dead-Front Covers designed to fit existing meter socket spaces
Mechanical Line Side Lugs included for easy wiring to the meter socket (all wiring to be performed by others)
CAD Drawings Available for city approval (additional cost applies)
Whether you're retrofitting an existing system or expanding capacity, our Meter Socket Kits provide a reliable, compliant, and custom-engineered solution.
Meter Socket Kits
