UL 891 DEAD-FRONT SWITCHBOARDS

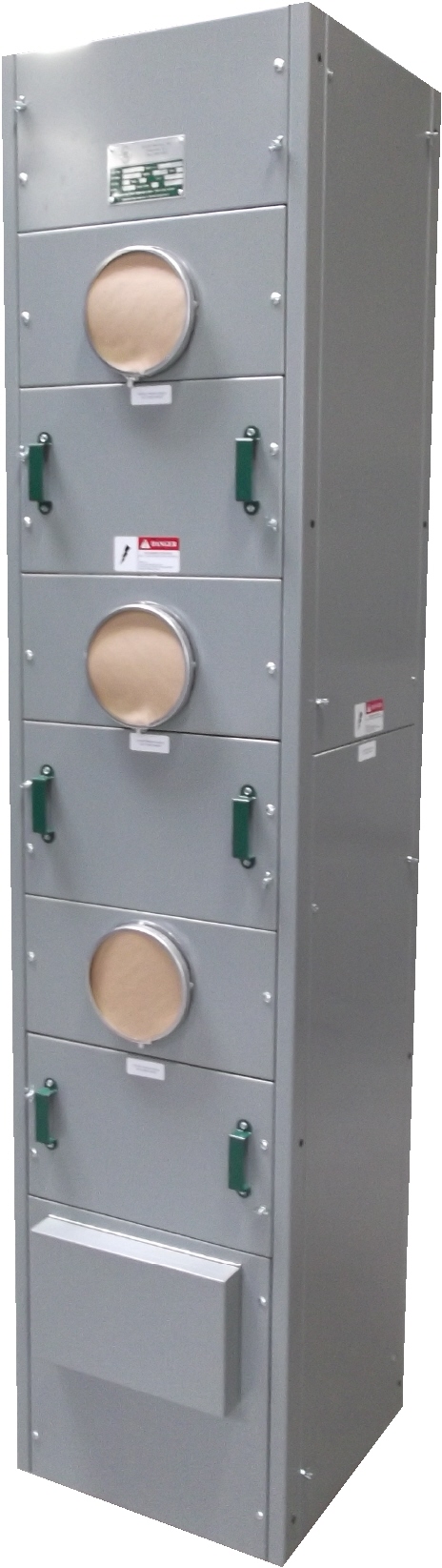

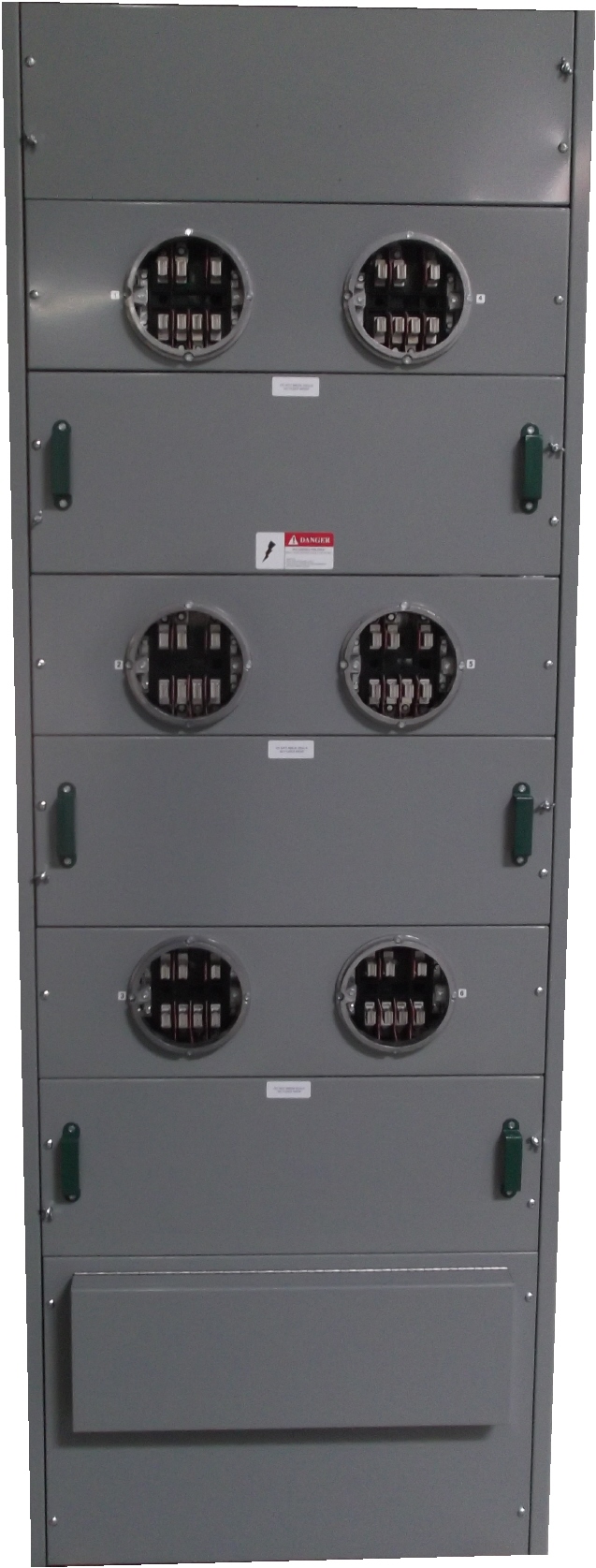

Commercial MultiMetering Switchboards
- Standard and Custom Switchboards
- 400A to 6000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100 KAIC
- Feeder Breakers or Fusible Pullouts
- NEMA 1, 3R or Stainless Steel Enclosures
- 3 Meter or 6 Meter Sections.
- Class “R” Type Switches are Supplied in 32” Width for 4 Meters Max.
- Loads to Exit Bottom is Standard
- Rear Wireway Open (Front Accessible)

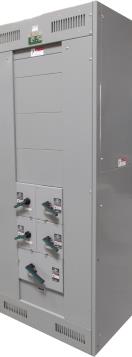

Commercial Distribution Switchboards
- 400A to 6000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100KAIC
- NEMA 1, 3R or Stainless Steel Enclosures
- Breaker or Fusible Switches Main or Feeders
- Surge Protector Devide (SPD)
- Customer Metering and Monitoring

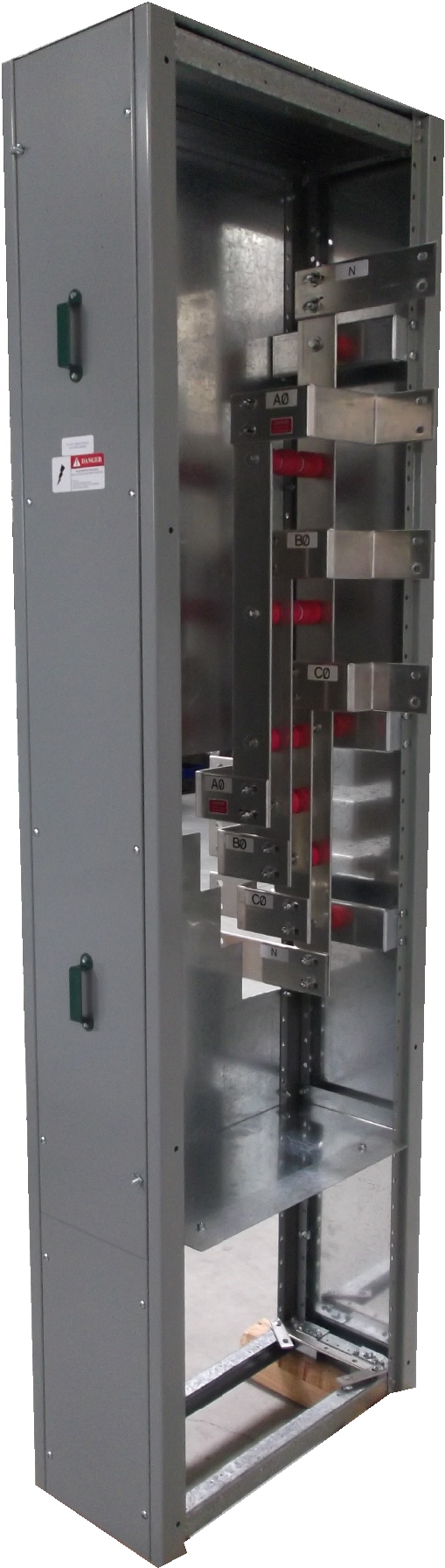

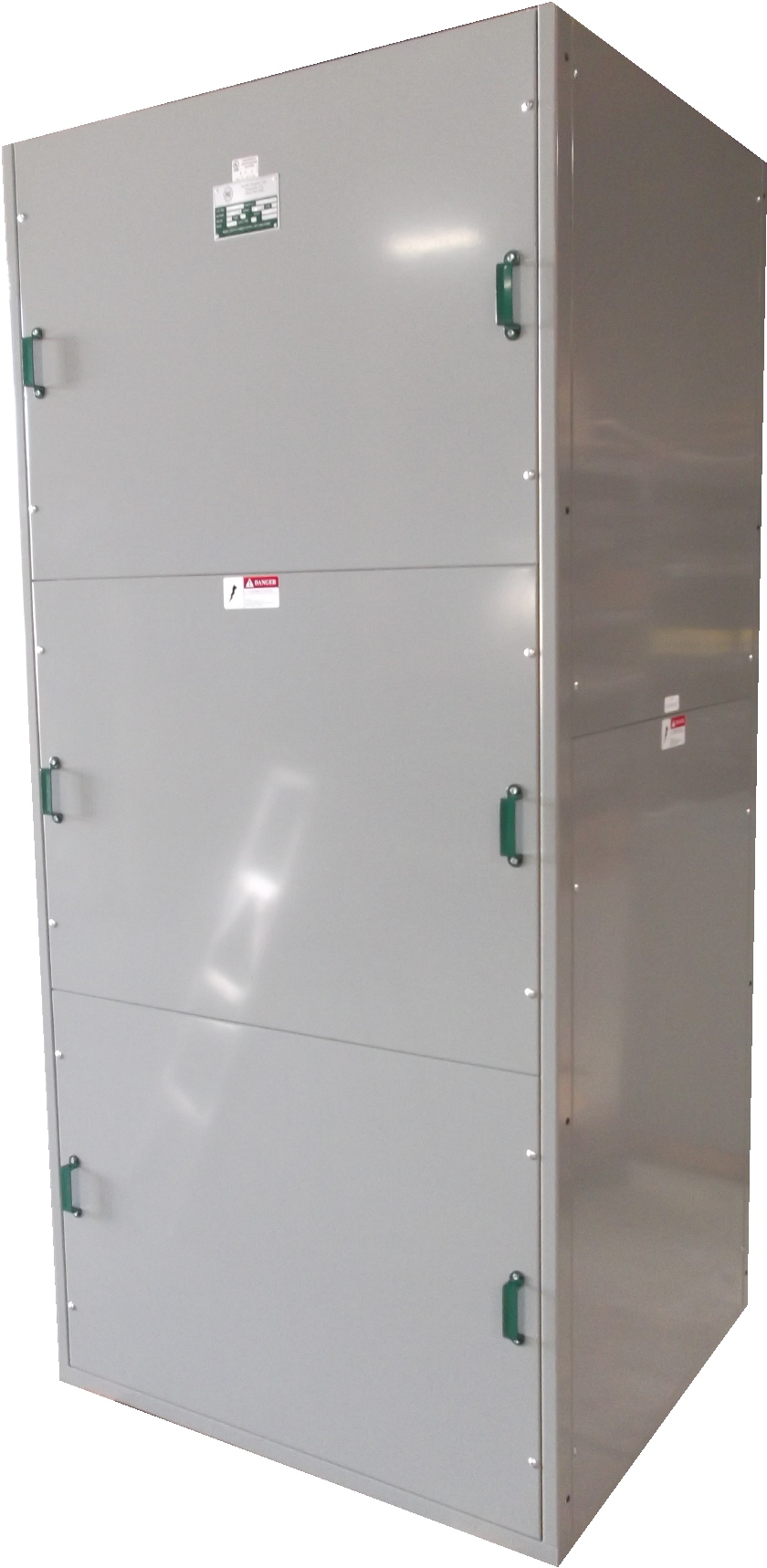

Commercial Underground Pull Sections
- 400A to 6000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100KAIC
- NEMA 1, 3R OR Stainless Steel Enclosures
- Euserc Compliant
- Compatible with any utility Company
- Mechanical or Compression Lugs
- Fire Pump Taps
- Bus Duct Connections
- Surge Protector Device
EUSERC or NEMA Underground Pull-Meter Compartment Sections
- 400A to 5000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100 KAIC
- NEMA 1, 3R or Stainless Steel Enclosures
- Hot Sequence Metering Compartment
Underground Pull-Main Sections
- 400A to 4000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up To 2000A Max.
- Up to 100KAIC
- In NEMA 1, 3R or Stainless Steel Enclosures

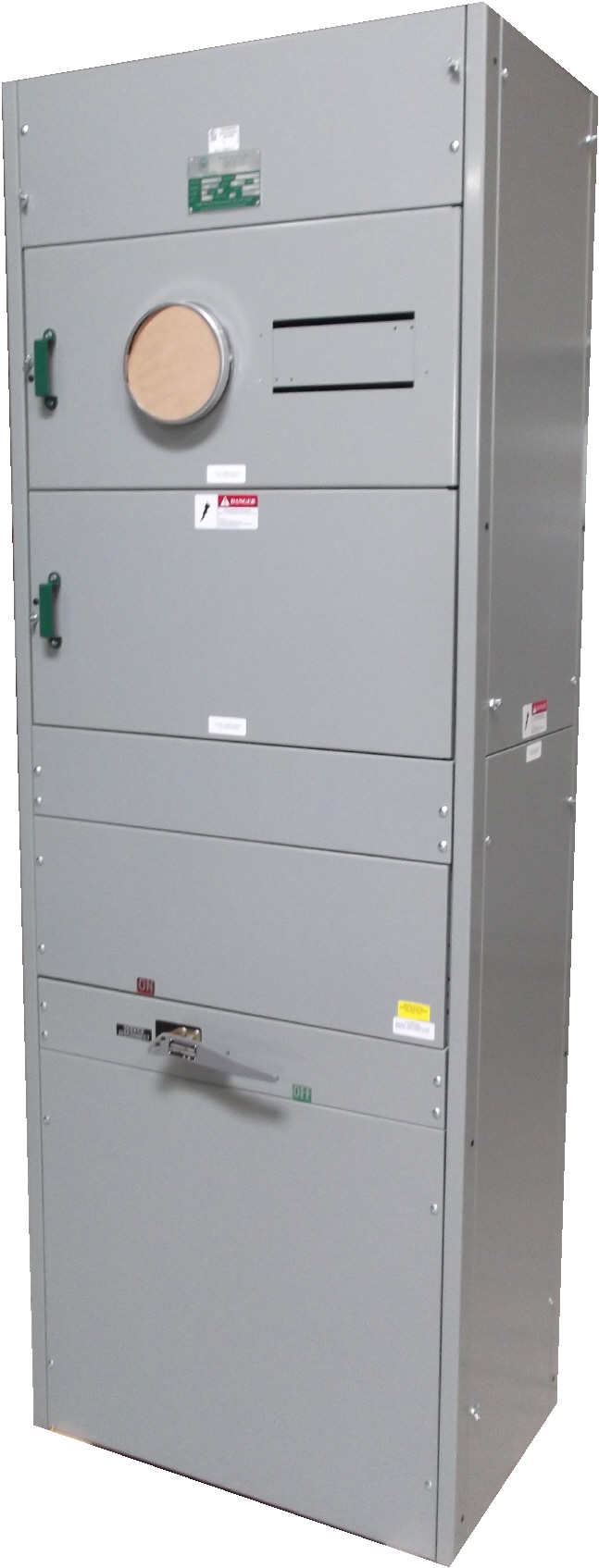

EUSERC or NEMA Commercial Meter Main Sections
- 400A to 4000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100KAIC
- NEMA 1, 3R Stainless Steel Enclosures
- Available with Distribution Panel below. See Chart below for Available Unit Space:
Commercial Automatic Transfer Switch Sections
- 400 Amp to 5000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100KAIC
- In NEMA 1, 3R or Stainless Steel Enclosures

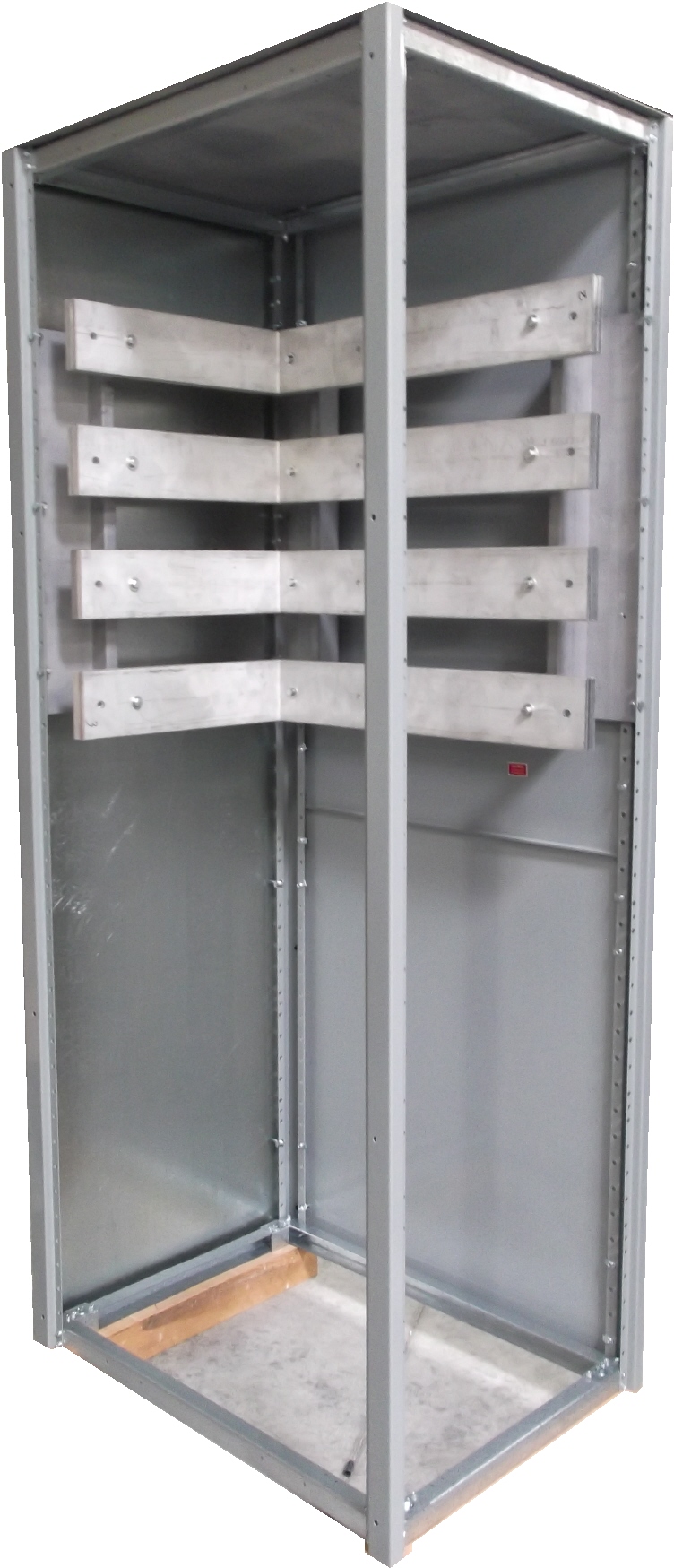

Silver or Tin Plated Copper, or Aluminum BusSwitchboard Corner Sections
- 400A to 6000A
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100KAIC
- NEMA 1, 3R or Stainless Steel Enclosures

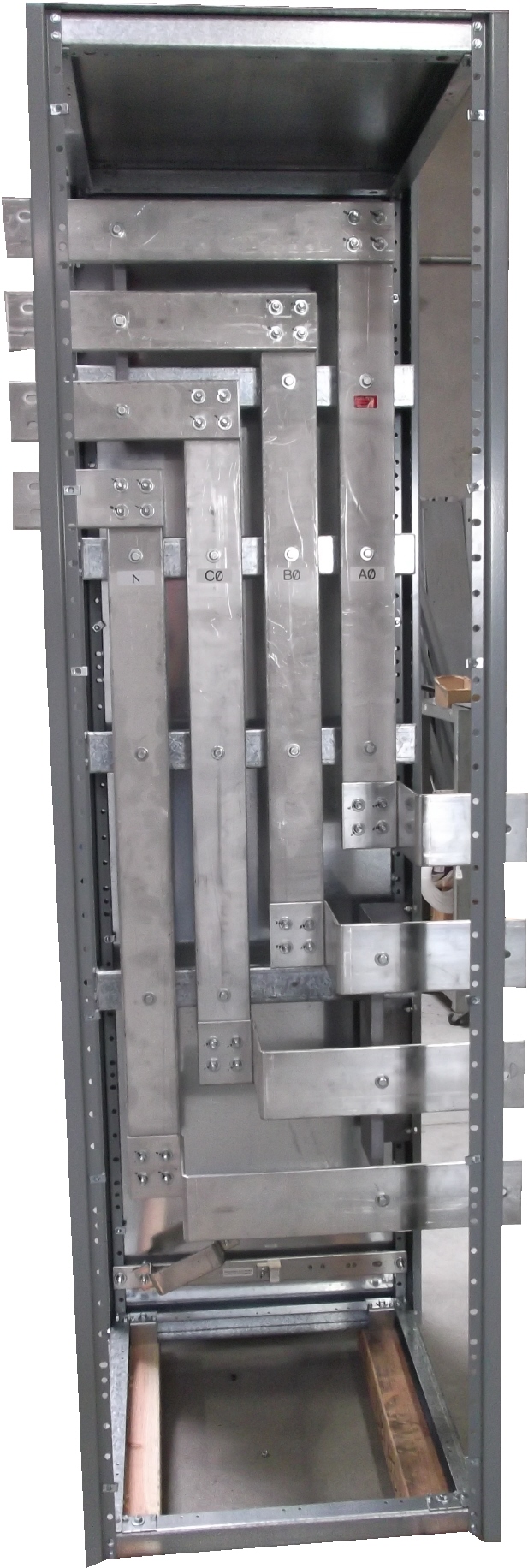

Switchboard Transition Sections
- Custom Made Transition Sections
- Available With or Without Bussing
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100KAIC
- NEMA 1, 3R or Stainless Steel Enclosures
- Dry-Type or Liquid Fill Transformer Transition Sections
- MCC Transintions Sections
MAINS
AMPS
UNIT SPACE
CIRCUIT BREAKER
400-600A
21.25"
CIRCUIT BREAKER
800-1200A
17.50"
FUSIBLE SWITCH
400-600A
20.0"
FUSIBLE SWITCH
800-1200A
13.75"
Image coming soon
Image coming soon
Image coming soon

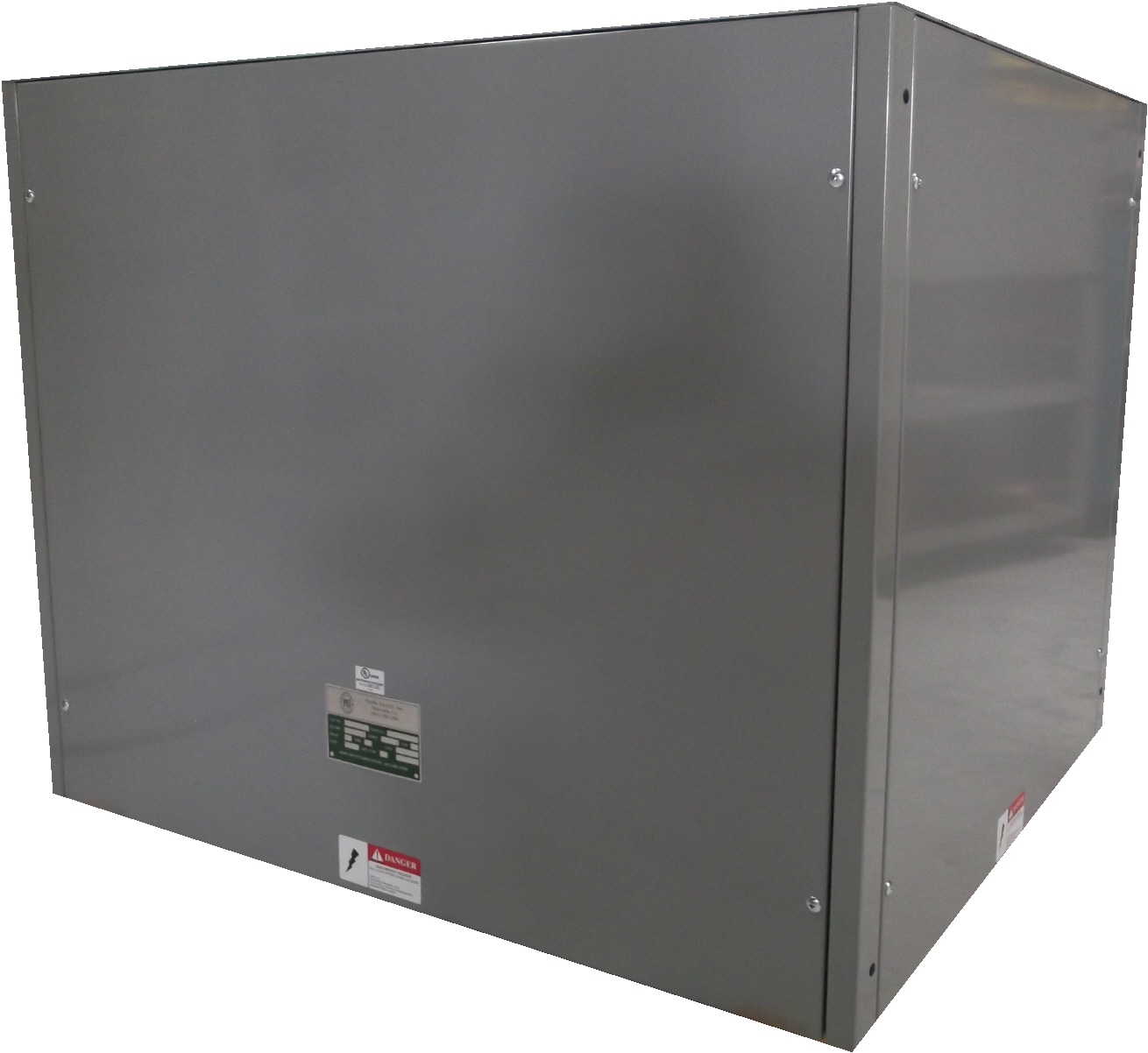

Top Hat Pull Box Sections
- Bussed or Non-Bussed
- Silver or Tin Plated Copper, or Aluminum Bus
- Up to 100KAIC
- NEMA 1, 3R or Stainless Steel Enclosures
